Gmade Sawback 4LS 4-Link 1/10 Rock Crawler Kit

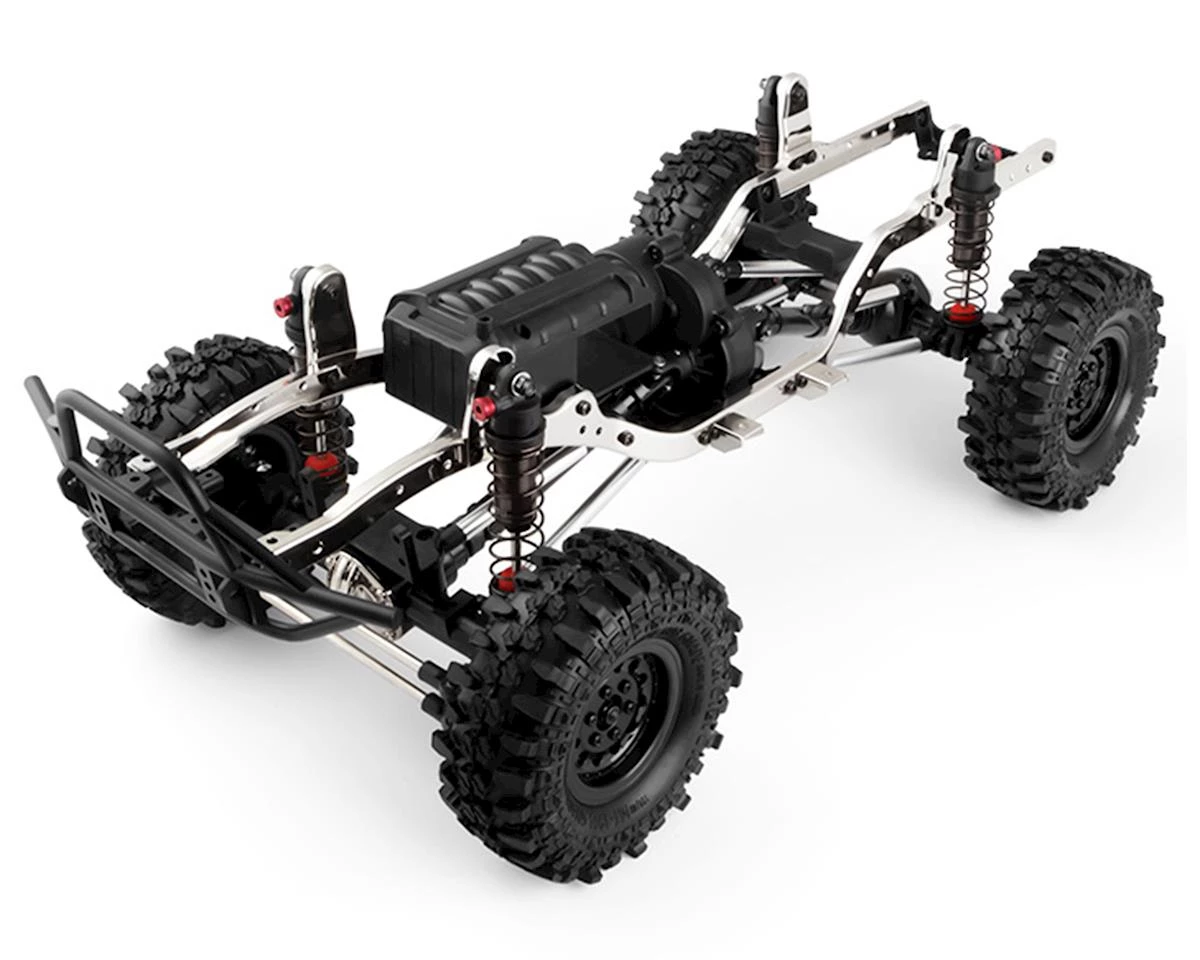

The Gmade Sawback 4LS combines 4-link suspension, 1.9″ tires and wheels, and 93mm XD Aeration shocks to deliver a dramatic performance upgrade. By getting rid of the leaf springs and small 1.5″ tires that are found on the standard Sawback, the 4LS offers reduced torque twist, increased suspension articulation and improved ground clearance. Additionally, the Sawback 4LS body has been finished off with a tube front bumper, grille, roll bar and detailed interior components to elevate the appearance of this awesome scale rig.

Gmade NR01 beadlock wheels are combined with MT 1903 super soft compound 1.9″ tires to keep the rig rolling. An adjustable battery tray allows you to fit a variety of different battery types, and the highly detailed, dust proof receiver box will keep your electronics safe and concealed when the going gets rough. Combine this with aluminum steering rods, solid spool type 32 tooth front and rear locked differentials, metal gear covers and one piece graphite axle housings, and you have a recipe for unmatched scale adventure. Add your electronics to this incredible package and you are ready for the rocks!

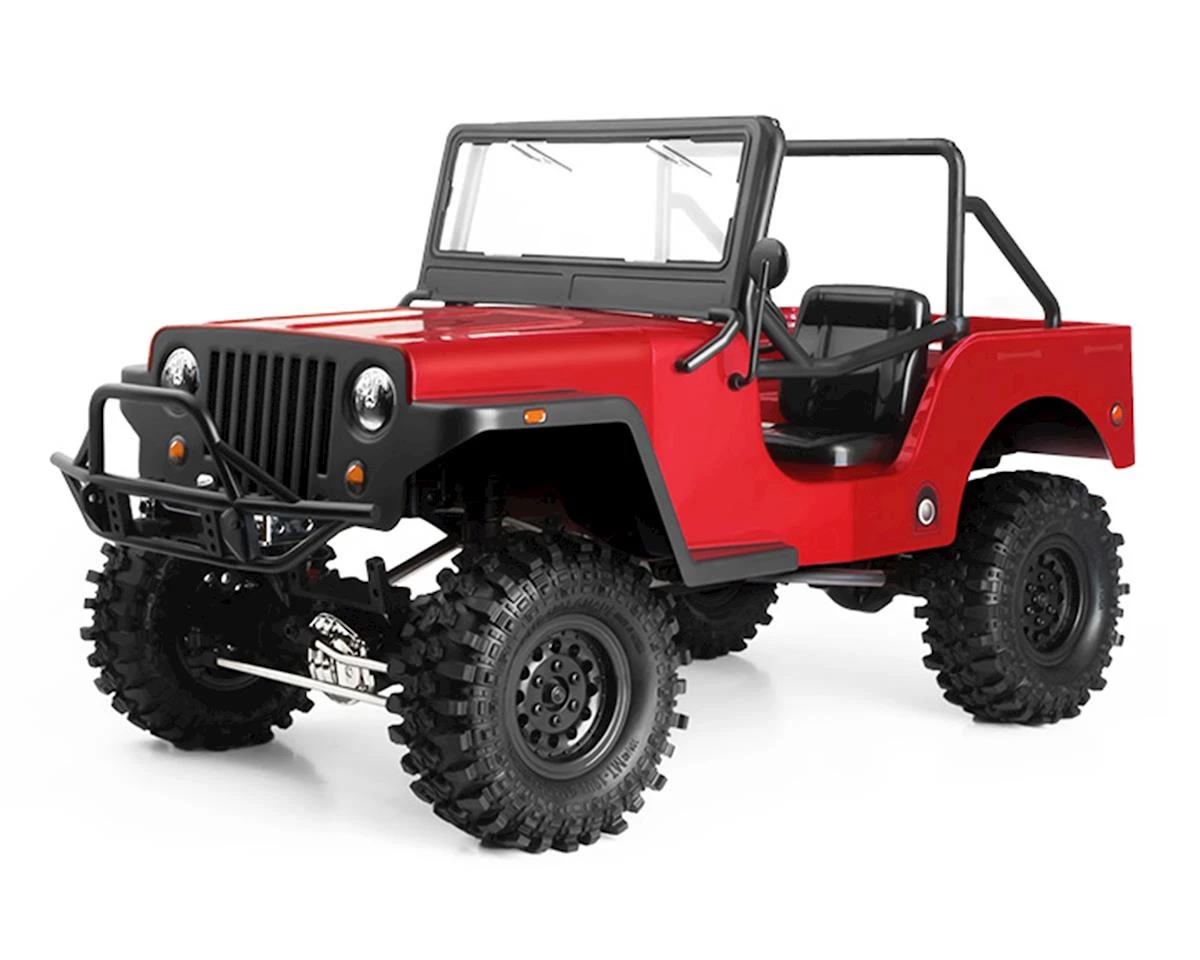

NOTE: Painted body shown in photos is for illustrative purposes only. Included body requires assembly, is clear and requires paint. See needed to complete list below for a full list of items required to complete the model.



Sawback 4LS GS01 Features:

• 93mm XD Aeration Aluminum Oil Shocks
• MT-1903 1.9 Tires & NR01 Beadlock Wheels with Center Hubs
• Full Time 4WD
• One Piece Graphite Axle Housings & Metal Gear Covers
• Solid Spool Locked Differentials
• Dust Proof Transmission
• Metal Motor Mount
• Full Bearings
• Universal Driveshafts
• Sawback Body with Included Scale Accessories

Specifications:
Width: 234mm
Height: 255mm
Length: 463mm
Wheelbase: 287mm
Ground Clearance: 68mm
Weight: 1.7kg (no electronics)

Needed to Complete:

• 2-Channel Radio System
• 540 Electric Motor & ESC
• High Torque Steering Servo
• 7.2 NiMH – 7.4V LiPo Battery & Compatible Charger
• Paint for Body
• Tools for Assembly

This product was added to our catalog on March 31, 2016
