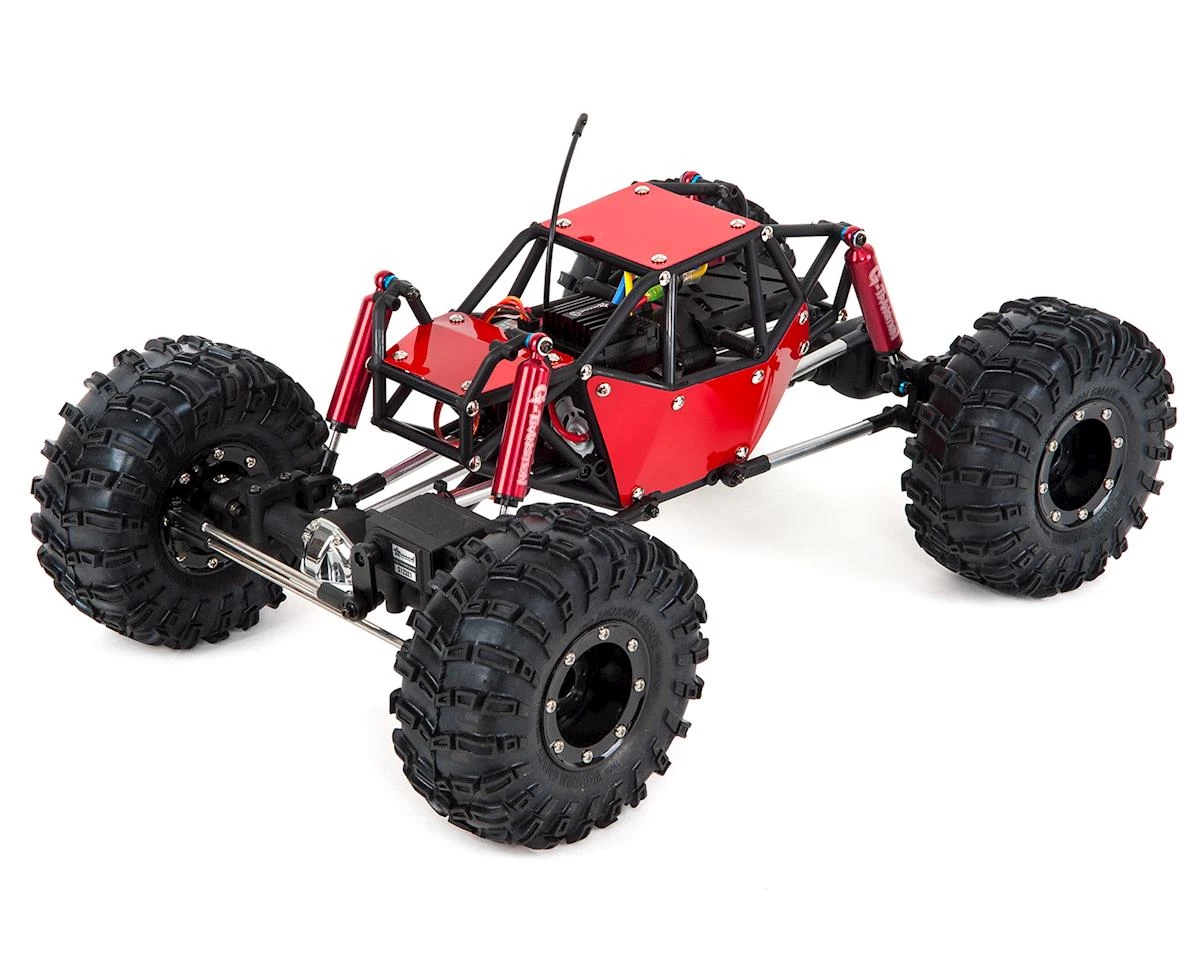

Gmade R1 1/10 RTR Rock Crawler Buggy w/2.4GHz Radio (Red)

The Gmade R1 1/10 Rock Buggy is a fully ready to run crawler that replicates the look of a high performance rock buggy, and delivers performance that makes it a capable scale recreation of the real thing. A 2.4GHz transmitter, brushed ESC and motor and metal gear steering servo have been included. Just add your battery and AA batteries for the transmitter and you are ready to hit the rocks!

The molded composite tube frame features an incredibly realistic appearance, and red body panels allow you to add a stylish touch to your rig. But this design does more than look the part, it provides protection to your electronics, and keeps everything safe when you tumble down the rocks. Other notable features include tough universal slider shafts that deliver the power from the transmission to the unique “Portal” high clearance front and rear axles. Plus, with a fully sealed transmission, the awesome G-transition shocks, and standard 2.2 size wheels, the Gmade R1 delivers high performance fun on any terrain.

In-Depth Features:

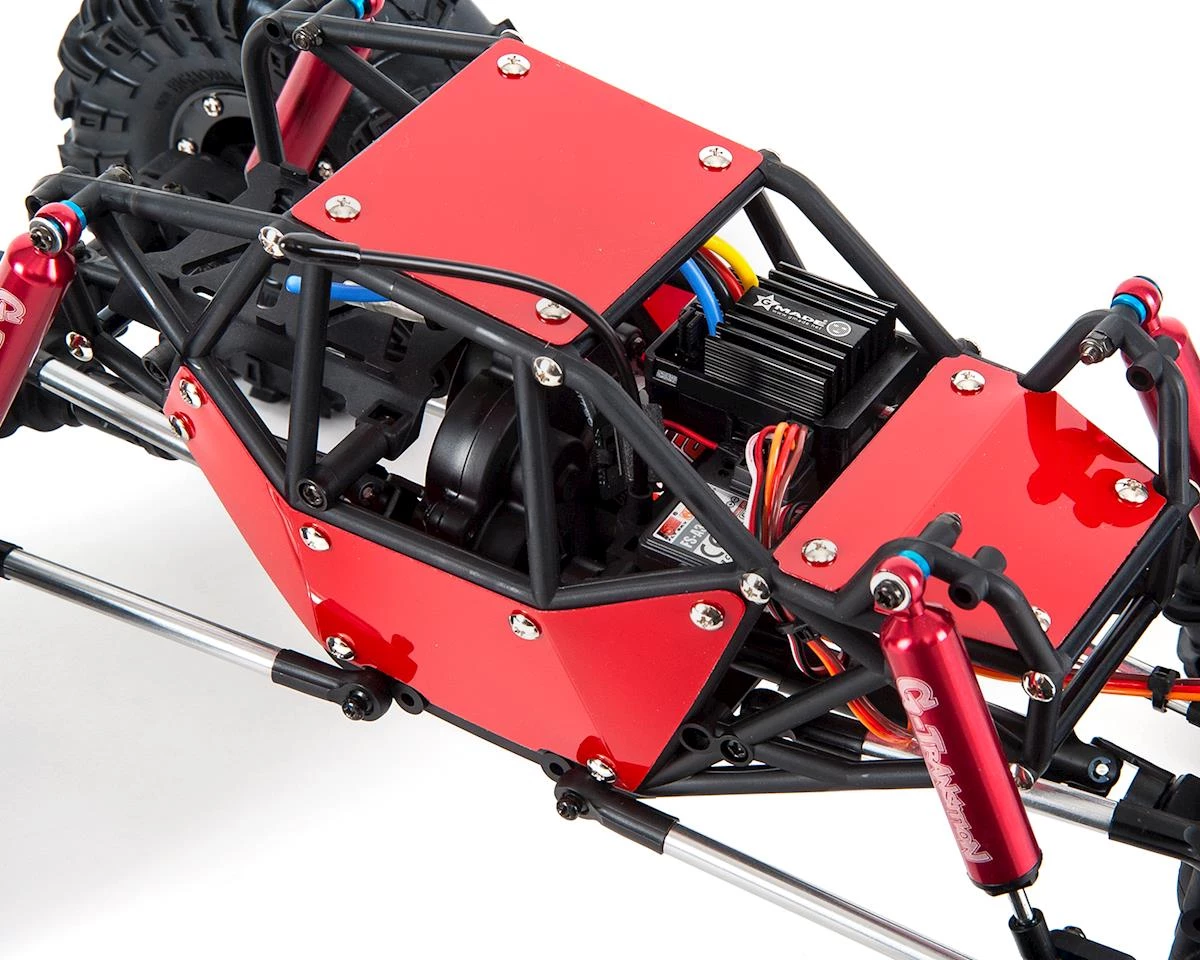

• Tube Chassis: The R1 tube chassis is very light and firm. The radio plate, battery plate and center skid plate are all built into the chassis. The 3D chassis offsets the external shocks effectively.

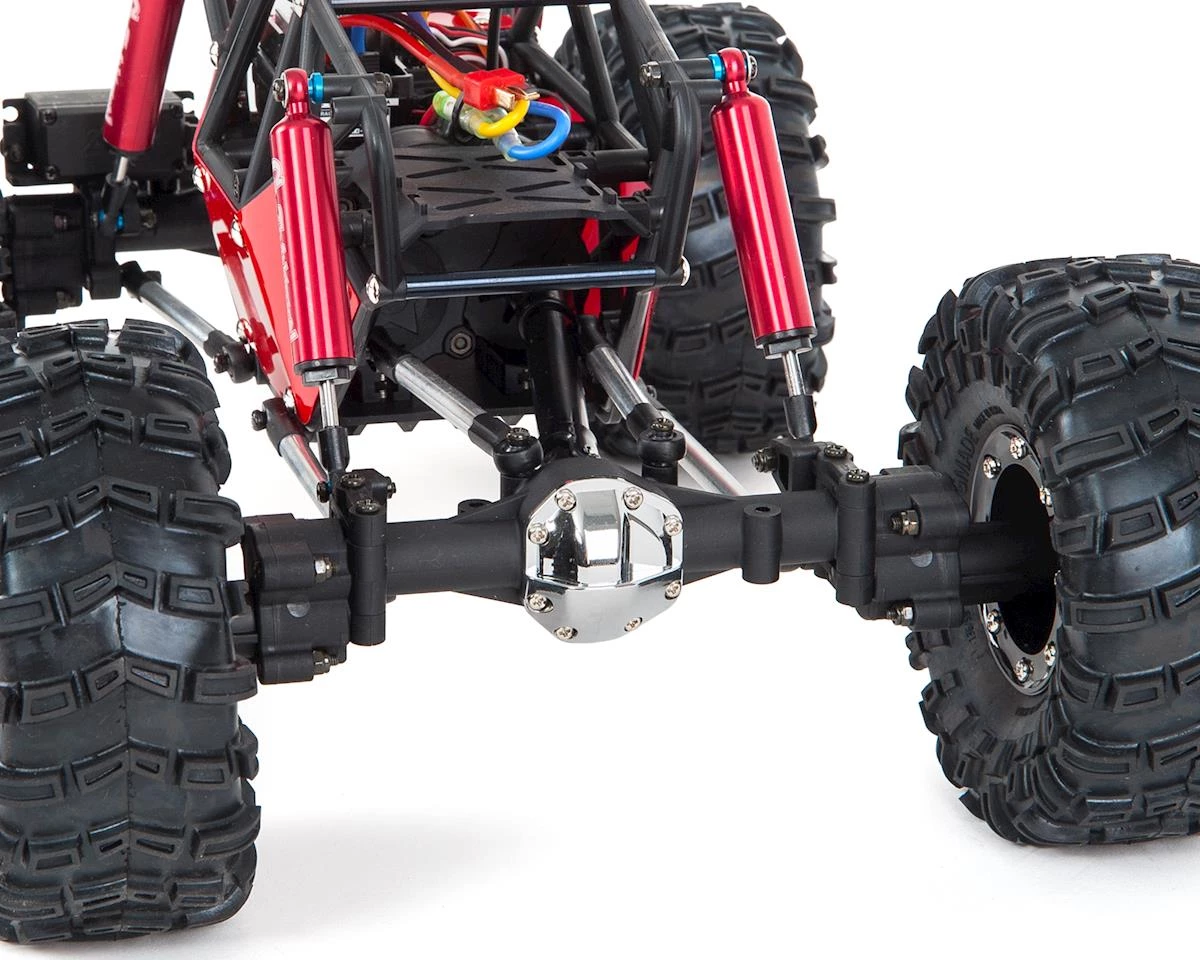

• Portal Axle: Portal axles simply mean the drive axles are above the center of the wheels. This gives the R1 greater ground clearance beneath the axles than other trucks using the same tires.
• Portal Gear: The R1 portal gear offers high ground clearance and can reduce speed.
• Transmission: The perfectly sealed R1 transmission is dust proof. Full ball bearings are placed at all axis of the gears. You can also adjust the gear mesh backlash exactly the way you want because the motor mount cap can be opened and closed for you to see in.
• G-Transition Shock Absorbers: The G-Transition shock settings can be changed to suit your driving style, courses and terrain. This can greatly upgrade your driving performance.
• Bighorn Tires: The Bighorn tire gives your car better grip in rock crawling and off-road conditions. The large soft rubber tires offer excellent traction nearly any where you roam.
• 2.2″ GT Beadlock Wheels: Stylish dual sided beadlock wheels. Only eight screws secure the wheel making tire maintenance and replacements quick and easy.
• Body and Decals: The body panel has been cut to fit the R1 chassis. Sticker decals are also included so you can customize your rig just the way you want it.

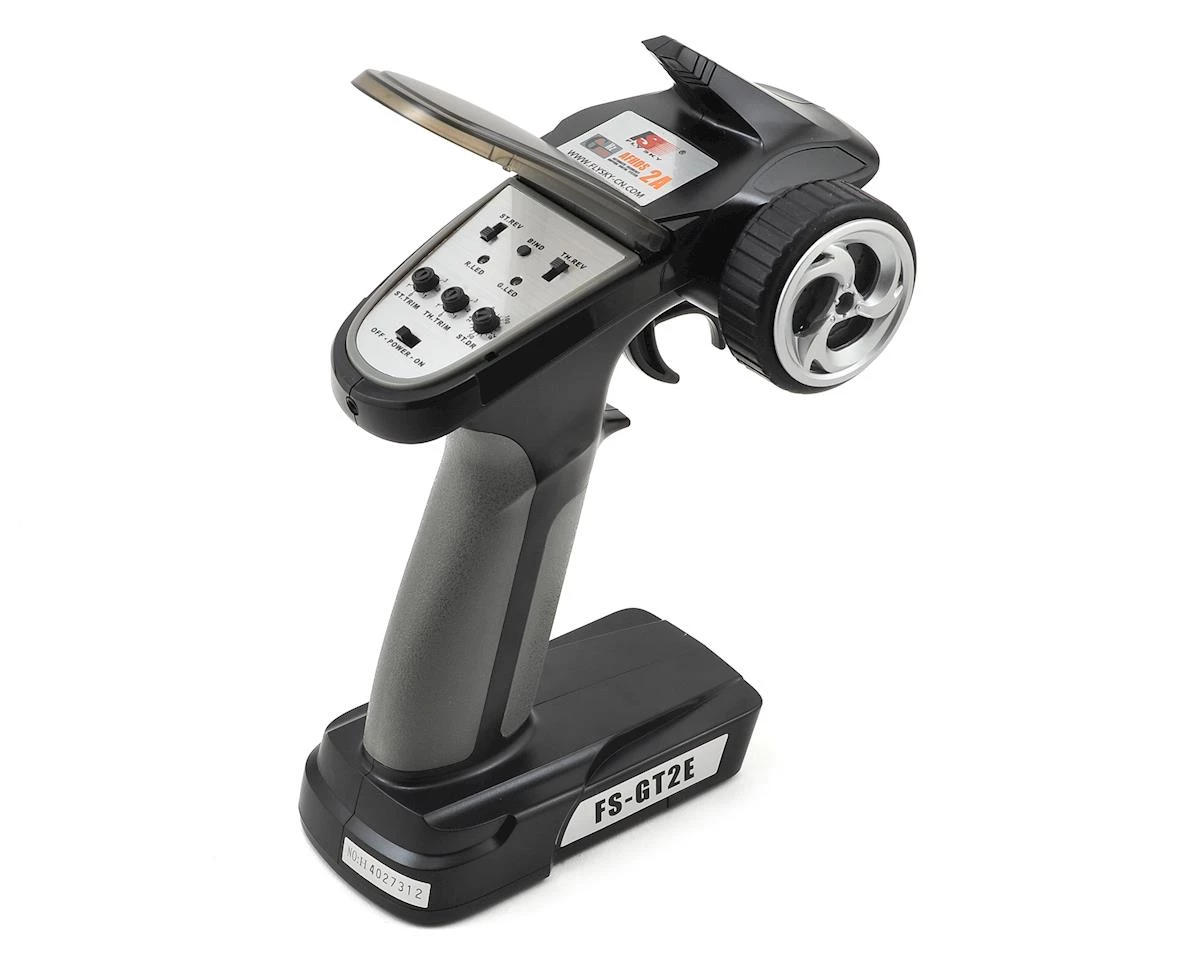

• Includes: 2.4GHz radio system, RS-540 27 turn motor and brushed ESC, high torque metal gear steering servo.

Specifications:
Width: 290mm (11.4 inch)
Height: 190mm (7.5 inch)
Length: 440mm (17.3 inch)
Wheelbase: 310mm (12.2 inch)
Wheels: 56mm (2.2 inch) Dual side beedlock wheels
Tire Height: 136mm (5.3 inch)
Tire Width: 59mm (2.3 inch)
Tire Inner Diameter: 56mm (2.2 inch)
Axle Ground Clearance: 55mm (2.2 inch)
Center Ground Clearance (Droop Set-up): 75mm (3 inch)
Center Ground Clearance (Sprung Set-up): 95mm (3.7 inch)

Needed To Complete:

• 7.2V NiMH or 7.4V LiPo Battery pack with T-style connector & compatible battery charger
• AA Batteries for the transmitter

This product was added to our catalog on September 23, 2016
