Gmade 93mm XD Diaphragm Shock Set (2)

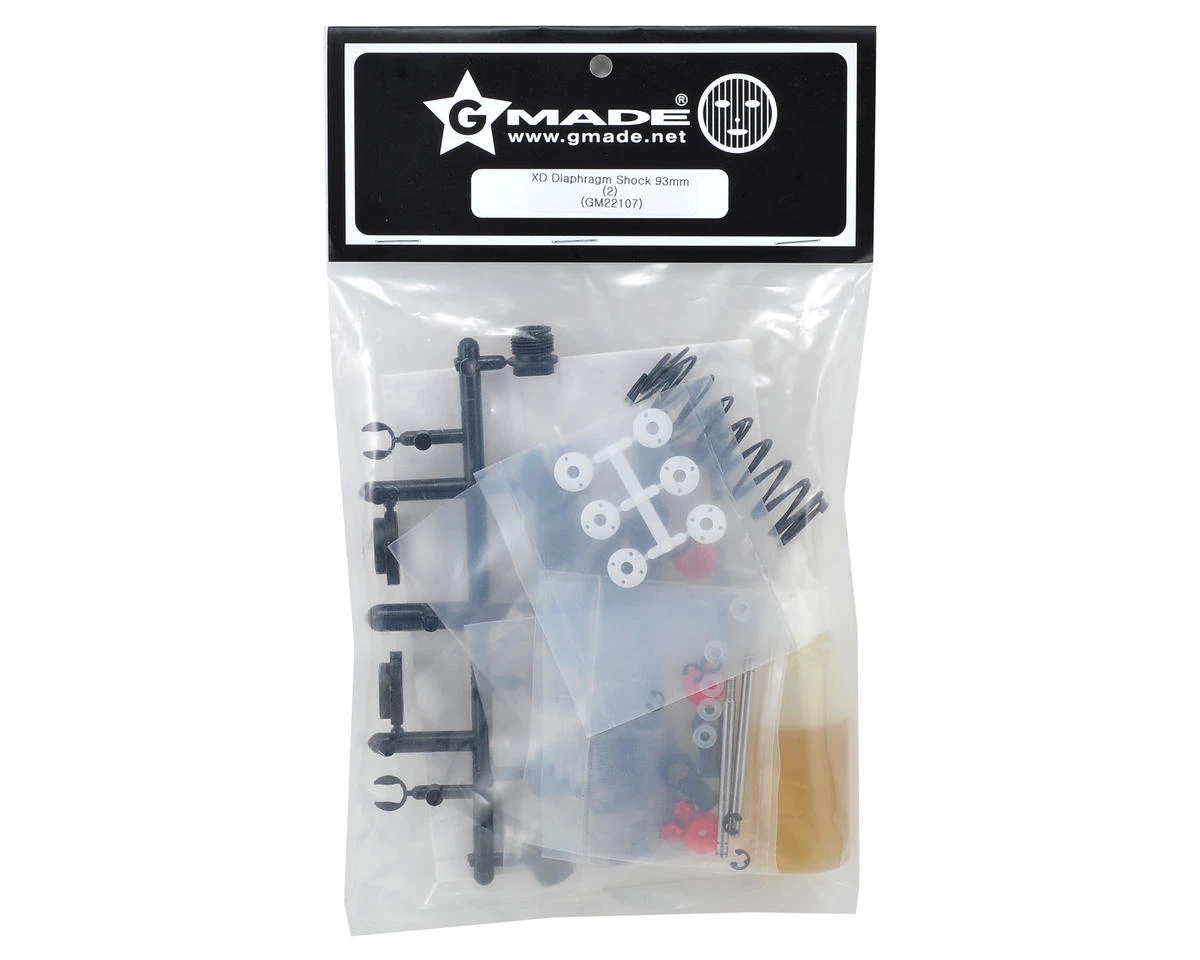

This is the Gmade 93mm XD Diaphragm Shock Set.

Features:

• Fits 1/10 scale crawlers & trucks, 1/10 scale EP buggys and Short course trucks (such as Axial SCX10, Associated B4/B44 and SC10 4×4)
• CNC machined Aluminum shock bodies and caps
• Titanium gray anodized shock bodies and caps
• Lower shock ends includes red anodized aluminum balls
• Fully threaded for rapid adjustment
• Delrin pistons
• 3.5mm thick shock shafts
• Shaft exits through double O-ring seals
• Easy load shock seal assembly
• Laser engraved for authenticity

Specifications:
Length (Mounting hole to hole): 93mm
Shock Body Diameter: 14mm
Spring Diameter: 19mm
Spring Length: 58mm
Full Shaft Travel Range: 26mm (without Rubber bump stop)
Shaft Diameter: 3.5mm

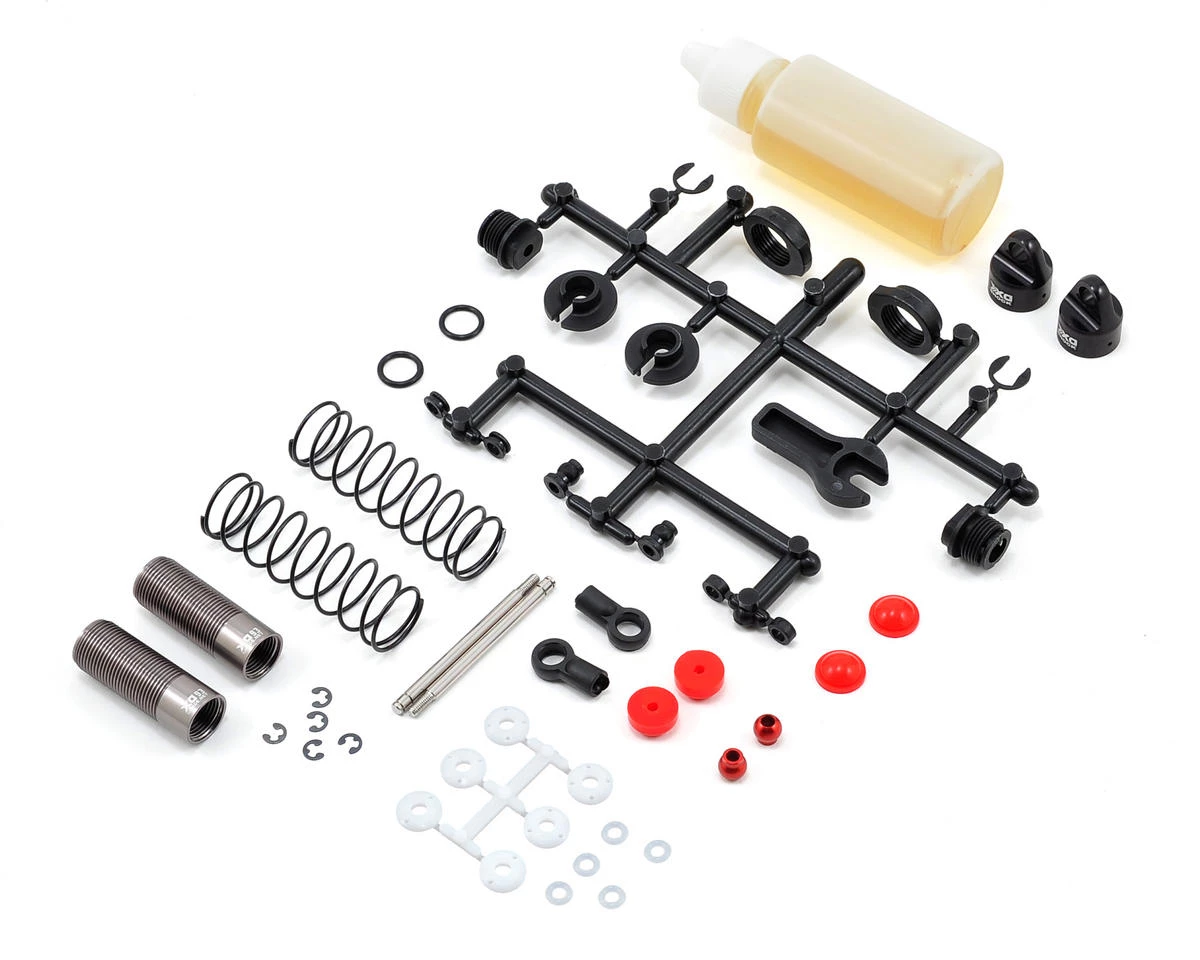

Includes:

• (2) Titanium gray anodized aluminum shock bodies
• (2) Titanium gray anodized aluminum shock caps
• (2) Diaphragms
• (2) Shock springs
• All necessary hardware to finish the shocks
• Assembly instructions
• Bottle of shock oil

This product was added to our catalog on November 27, 2012
