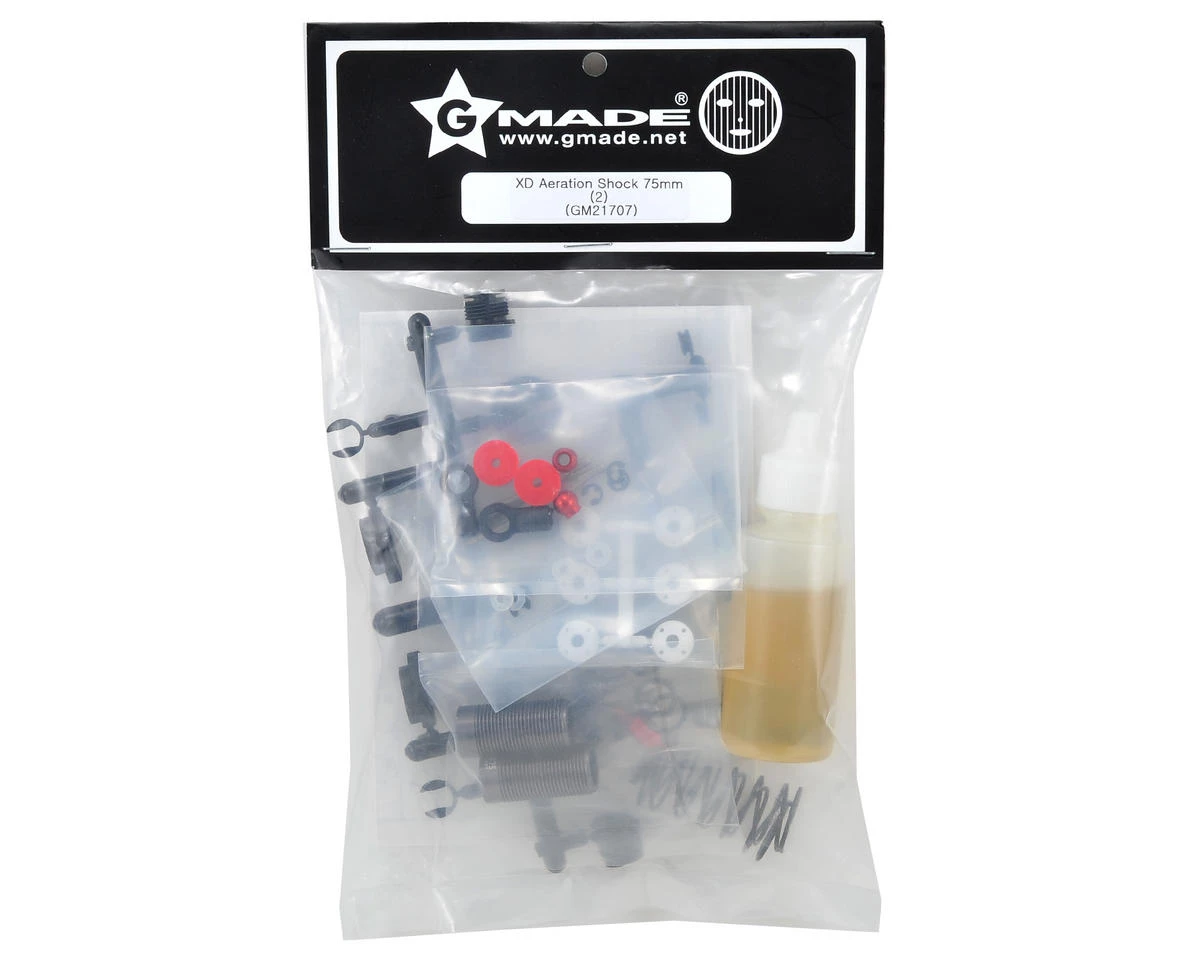

Gmade 75mm XD Aeration Shock Set (2)

This is the Gmade 75mm XD Aeration Shock Set.

Features:

• Fits 1/10 scale crawlers & trucks, 1/10 scale EP buggys (such as Associated B4/B44 front)
• Emulsion shocks mix with oil & air, it is easy to build and works better in a bumps and jumps, landing and overall feels good on a rough surface.
• CNC machined aluminum shock bodies and aeration screws
• Titanium gray anodized shock bodies
• Red anodized aeration screws
• Lower shock ends includes red anodized aluminum balls
• Fully threaded for rapid adjustment
• Delrin pistons
• 3.5mm thick shock shafts
• Shaft exits through double O-ring seals
• Easy load shock seal assembly
• Laser engraved for authenticity

Specifications:
Length (Mounting hole to hole): 75mm
Shock Body Diameter: 14mm
Spring Diameter: 19mm
Spring Length: 40mm
Full Shaft Travel Range: 17mm (without Rubber bump stop)
Shaft Diameter: 3.5mm

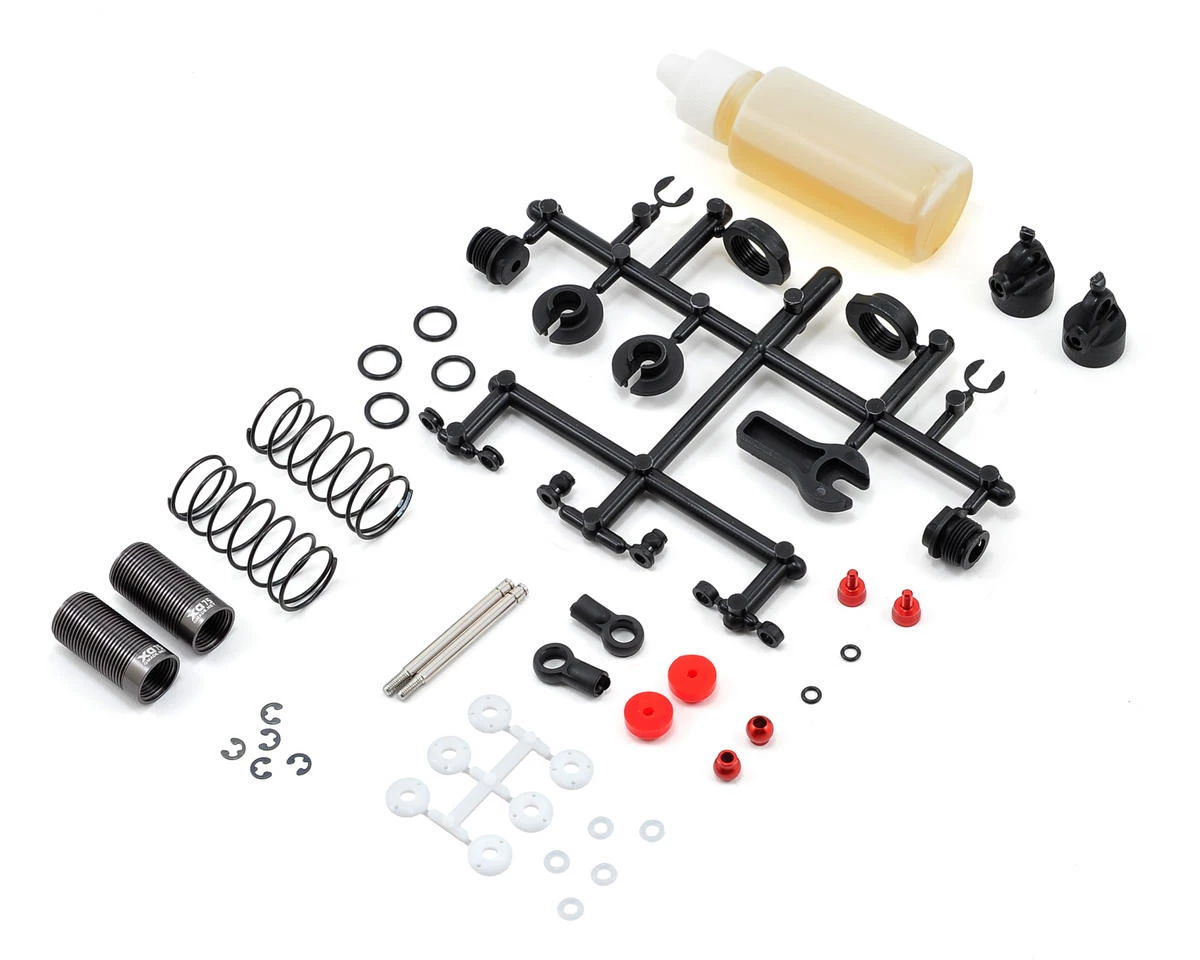

Includes:

• (2) Titanium gray anodized aluminum shock bodies
• (2) Red anodized aluminum aeration screws
• (2) Shock springs
• All necessary hardware to finish the shocks
• Assembly instructions
• Bottle of shock oil

This product was added to our catalog on February 24, 2020
